Professional Marine Grade Aluminum Plate 5a02 H112 Alloy 3.2mm Thickness

Professional Marine Grade Aluminum Plate 5a02 H112 Alloy 3.2mm Thickness

    • Professional Marine Grade Aluminum Plate 5a02 H112 Alloy 3.2mm Thickness
  • Professional Marine Grade Aluminum Plate 5a02 H112 Alloy 3.2mm Thickness

    Product Details:

    Place of Origin: CHINA
    Brand Name: JIMA Aluminum
    Certification: IRIS,ISO9001,ISO 14001, IRIS.
    Model Number: 5a02

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiations
    Price: Negotiations
    Packaging Details: wooden pallet
    Delivery Time: 20~30days
    Payment Terms: T/T, L/C
    Supply Ability: 1000 MT/ per month
    Contact Now
    Detailed Product Description
    Application: Marine Sheet Shape: Plate,sheet,panel
    Standard: GB/T 3618-1989 Name: 5a02 Aluminum Sheet Metal
    Alloy: 5a02 Thickness: 3.2mm
    High Light:

    marine aluminum plate

    ,

    marine aluminum sheet

    Products Name:



    5a02 H112 aluminum alloy metal plate for inner and outer siding Ship Structural Parts


    Products Description(5383 alloys) :

    •   Alloy :5a02
    •   Typical Temper:H32,H112,H111,H24,
    •   Hardness(HB):45~75HB
    •   Specification:can be supplied custom
    •   Standard:GB/T 3618-1989
    •   Manin content :(Al-Mg)

     5a02 Application in ship building :

    1.  Marine sheet

    2.  Inner and outer siding

    3.  Ship Structural Parts

    4.  Transportation vehicles

    5.  Board of railway carriage

    6.  Storage device of oil and chemical

    7.  Medcial machiney



    5a02  Chemical Composition

    Cu Mg Mn Fe Si Zn Ti Cr Other Al
    0.10 2.0~2.8 0.15~0.40 0.4 0.4 - 0.15 0.10 0.15 Remainder



    5a02 Mechnical Properties

                Alloy

    Tensile Strength

    σbMpa)

    Yield Strengthσ

    0.2Mpa)

    Enlogation

    (δ5%)

    5a02

    Min.147 Min.120 Min.14


    5383 Hot Rolled sheet Range specification

    Alloy Series TypIcial Alloy Typcial Tempe

    Thickness

    (MM)

    Width

    (MM)

    Length

    (MM)

    5sereis

    5a02



    F,H112, 3,0~260 600~2600 1000-24000


     aluminum plate specification Range (5383 alloy)

    Alloy Series TypIcial Alloy Typcial Tempe

    Thickness

    (MM)

    Width

    (MM)

    Length

    (MM)

    5series



    5a02 O,H111 3.0~260 1000~4000 1000-38000



    JIMA OUR Services

    •  (1):   We have 3600 tons of stock in warehouses
    •  (2):    Excellent experiences with after-sale service team
    •  (3):   Every process will be checked by QC ,and to insures every material high quality.
    •  (4):   Professional packing teams for packing safely.
    •  (5):   Trial order delvery time within 7days
    •  (6):   we are specialized in aluminum products 10 years,we can provide big value &support  and the high quality products.

    Package detail:

    Customers can choose either of them for their convenience.
    Generally there are 2 tons in one pallet, and loading 18-22 tons in 1*20'container, and 20-24 tons in 1*40' container



    FAQ:



    Q1:  Do you offer samples ? Ts it free or extra ?

    A:  Yes, we can offer free charge sample ,but not inculding the cost of freight.



    Q2:  You are Factory or Trading Company?
    A:  We are a Factory with more than 10 years experiences, we can provide big support.



    Q3:  What is the payment terms?

    Payment terms:L/C at sight,TT30%,



    Q4:  How you packing your products?
    A:  Standard in wooden pallet package.,Also we will follow customers' requirement.

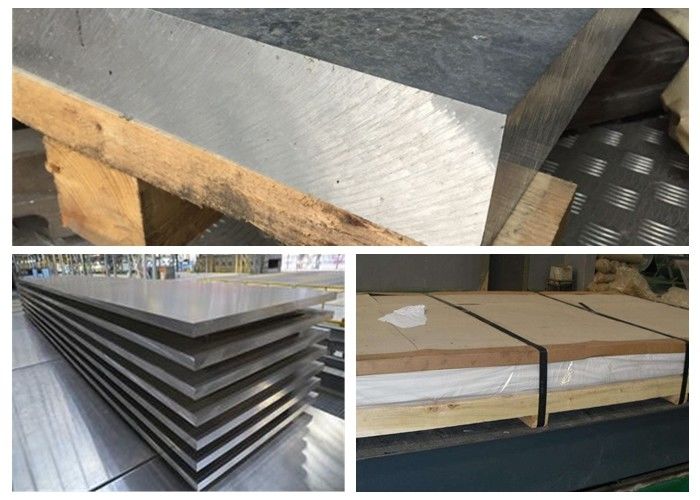

    About 5a02 luminum palte products Photos
