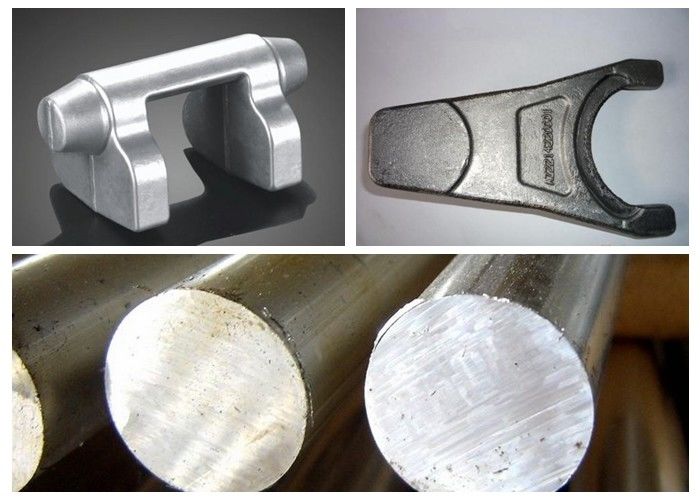

2219 Aluminium Forged LY19 EN AW 2219 AlCu6Mn 5004A A92219

2219 Aluminium Forged LY19 EN AW 2219 AlCu6Mn 5004A A92219

    • 2219 Aluminium Forged LY19 EN AW 2219 AlCu6Mn 5004A A92219
  • 2219 Aluminium Forged LY19 EN AW 2219 AlCu6Mn 5004A A92219

    Product Details:

    Place of Origin: CHINA
    Brand Name: JIMA
    Certification: ISO9001-2008,SGS,ROHS.
    Model Number: 2219

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiations
    Price: Negotiations
    Packaging Details: wooden pallet
    Delivery Time: 20~30days
    Payment Terms: T/T, L/C
    Supply Ability: 5000MT per month
    Contact Now
    Detailed Product Description
    Application: The Rocket Liquid Fuel Tank, Work Structure For Long Time High Temperature ,welding Structure, Vehicle Material Name: 2219 Aluminium Forged LY19 EN AW 2219 AlCu6Mn 5004A A92219
    Standard: JIS, DIN, BS, ASTM, SAE. Type: Casting Forging
    Technics: Forge, CNC Alloy: 2219 LY19 AlCu6Mn A2219 EN AW-2219 5004A A92219
    Temper: F,O, T6,H112
    High Light:

    aluminium alloy billet

    ,

    billet aluminum bar stock

    2219 aluminum forging​ Billet LY19 A2219 EN AW-2219 AlCu6Mn 5004A A92219



    2219 aluminum forging​ Quickly details

    1.   Alloy: 2219 LY19 A2219 EN AW-2219 AlCu6Mn 5004A A92219
    2.   Deformation of 2219 aluminum alloy, the aluminum and aluminum alloy.
    3.   The corrosion resistance of 2219 aluminum alloy is poor, good machining performance;
    4.   Poor brazing, easy arc welding and spot welding. Suitable for working under high temperature 315 ℃ of structure, high strength welding parts.
    5.   Temper: F,O, T6
    6.   Max diameter: 1320mm.
    7.   Max length : 7500mm.
    8.   The density:2.77kg/m3
    9.   Standard :UNS A92219,ISO R209 AlCu6Mn;CHINA GB 2219(LY19)
    10.   Normal size:Φ166,Φ220,Φ380,Φ396,Φ448,Φ462,Φ566,Φ582,Φ915,Φ1060,Φ1220,Φ1320

    2219 aluminum forging Application:

    1.   The rocket liquid fuel tank,
    2.   work structure for long time high temperature ,
    3.   welding structure,
    4.   vehicle material

    2219 aluminum alloy Chemical Composition Standard

    Cu Mg Mn Fe Si Zn Ti Zr Other Al
    5.8-6.8 0.02 0.2-0.4 0.3 0.2 0.1 0.02-0.1 0.1-0.25 <0.15 Balance



    Alloy 2219-T6 Mechanical properties

    Tensile strength

    (kg/mm2)

    yield point, elongation(kg/mm2) Elongation(%)

    brinell hardness



    shear strength(kg/mm2)



    fatigue strength(kg/mm2)
    45 31.6 14 115 26 10.5



    2219 aluminum forging product size.

    Alloy Products size

    Diameter

    (mm)

    Max. length

    (mm)

    2xxx

    2219 LY19 AlCu6Mn A2219 EN AW-2219 5004A A92219





    Φ166 7500
    Φ220 7500
    Φ380 7500
    Φ396 7500
    Φ448 7500
    Φ462 7500
    Φ566 7500
    Φ582 7500

    2xxx

    2219 LY19 AlCu6Mn A2219 EN AW-2219 5004A A92219



    Φ915 4500
    Φ1060 4000
    Φ1220 4000
    Φ1320 3500

    Remark: 1.  Billet peeling is available.
    2. The cut-to-length product is available upon to customer’s request.



    2219Aaluminum forging application

    Alloy forging product application
    2219 The rocket liquid fuel tank, work structure for long time high temperature ,welding structure, vehicle material

    Aluminum forging application

    2219 Aluminium Forged LY19 EN AW 2219 AlCu6Mn 5004A A92219 0
