Skeleton Forging Aluminium 7079 Billet , High Purity 7000 Series Aluminum Alloy

Skeleton Forging Aluminium 7079 Billet , High Purity 7000 Series Aluminum Alloy

Skeleton Forging Aluminium 7079 Billet , High Purity 7000 Series Aluminum Alloy

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Certification: ISO9001-2008,SGS,ROHS.
Model Number: 7079

Payment & Shipping Terms:

Minimum Order Quantity: Negotiations
Price: Negotiations
Packaging Details: wooden pallet
Delivery Time: 20~30days
Payment Terms: T/T, L/C
Supply Ability: 1000 per month
Contact Now
Detailed Product Description
Application: Skeleton Large Forgings Name: Extra-super Duralumin 7079 Aluminium Alloy Billet For Forging For Skeleton Large Forgings
Standard: JIS, DIN, BS, ASTM, SAE. Type: Casting Forging
Technics: Forge, CNC Alloy: 7079
Temper: T6

7079 extra-super duralumin aluminium alloy Billet for Forging of Skeleton large forgings,Aviation and aerospace fields.
Application:

Skeleton large forgings,Aviation and aerospace fields.

Quickly details:

Improve the plastic high to the mechanical properties of forgings.
Alloy: 7079.
Temper: T6,T652.
Max diameter: 1320mm.
Max length : 7500mm.
(AA) 7079,UNS A97079,GB 7A10(LC10);DIN AlZnMgCu0.5/3.4345, JIS (A7N11).

Features:

Large specification :the produced billetφ1320mm is the largest billet in the world.
The max : weight of the billet up to 12.5 ton.
High purity : low hydrogen, low dross, low alkali content inside the ingot .
high-homogeneity : composition & organization, Small degree of segregation.small grain
size difference between core and surface.

Fine grain size.
Availability of product with the hydrogen content ≤0.08ML/100gAl.
Availability of product with porosity at class one .
Availability of product with oxidation film at the class one.
Availability of product with ultrasonic flaw detection at level A.

7079 Chemical Composition Standard.


CuMgMnFeSiZnTiCrOtherAl
0.4-0.82.9-3.70.1-0.30.40.33.8-4.80.100.1-0.25<0.15Balance


Aluminum Alloy 7075 properties.

Temper


Tensile strength
(kg/mm2)

yield point, elongation(kg/mm2)Elongation(%)

brinell hardness


shear strength(kg/mm2)


fatigue strength(kg/mm2)
T654.847.81414531.616.2
T65254.847.81414531.616.2

Package: wooden pallet.

FAQ:

Q1.  Whats the maximum diameter ?
Is 1320mm.

Q2.  Is it the Fumigation carton pallet?
Yes ,it is .

Q3: How do you quote price ,per ton ,per meter or kg?
A: We provide more than two pricing modes.

Q4: How many quantity for 40'GP load?
A: Aprrox.25 tons.

Q5. How many tons you can supply each month?
We can offer more than 40000 tons each month.

Q6. Are the package suitable For export ?
Yes , it is suitable for export.

Aluminium forging alloy & forging product size.

AlloyProducts size

Diameter
(mm)

Max. length
(mm)

2xxx
4xxx
5xxx
6xxx
7xxx

Φ1667500
Φ2207500
Φ3807500
Φ3967500
Φ4487500
Φ4627500
Φ5667500
Φ5827500

2xxx
7xxx

Φ9154500
Φ10604000
Φ12204000
Φ13203500

Remark:1. Billet peeling is available.
2. The cut-to-length product is available upon to customer’s request.

Aluminium forging alloy & forging product application.

Alloyforging product application
2024Airplane, truck hub, ordnance, railway vehicles, machine structure
2025Aeroplane propeller
2218Airplane engine cylinder head and piston
2219The rocket liquid fuel tank, work structure for long time high temperature ,welding structure, vehicle material
2618Airplane cylinder head and piston hub, jet motor accessories, rubber mold, General heat-resistant parts,ect
5083Military ballistic rocket parts, marine high strength welded structures, flange plate for liquefied natural gas, petrochemical machinery, ships and warships parts, sea water desalination structure
5056flange plate for liquefied natural gas, petrochemical machinery, ships and warships parts, sea water desalination structure
5456military rocket trajectory ballistic fist-size pile piece, marine high strength welded structures
6061Truck component, automobile hub, flange, chemical industry & water heater
6070aerospace, large-scale automobile vehicle, railway vehicle material & rotor parts
6082
6005Asupercharger fan, high speed train carriage material & transportation machinery parts, ect
6151the airplane engine box, auto parts, machine part,ect
7049aerospace vehicle structure
7079Skeleton large forgings
7075Airplane, ship, auto parts, structural member
7175
7475
7050high stress components, especially key components and aerospace materials and important structural materials
7150

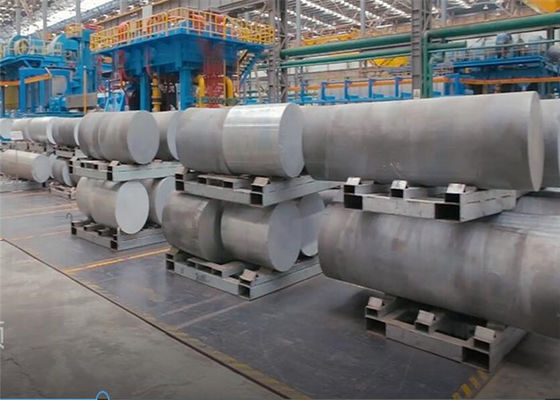

Photos of 7079 extra-super duralumin aluminium alloy Billet for forging
Skeleton Forging Aluminium 7079 Billet , High Purity 7000 Series Aluminum Alloy
