| Place of Origin: | China |
| Brand Name: | JIMA |
| Certification: | ISO |
| Model Number: | 8011 a8011 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 15-30 days |
| Supply Ability: | 500 ton per month |
| Alloy: | 1100, 1030B , 3102 , 8011 | Thickness: | 0.03-0.8mm |
|---|---|---|---|
| Application: | Use Air Conditioning And Electrical Heat Pump | Typical ID: | 76/156MM |
| Temper: | O | Color: | Gold, Can Be Customized |
| Name: | Aluminum Epoxy Resin Hydrophobic Foil A8011- O Gold Use Air Conditioning | Standard: | EN 10204 |
| High Light: | coil aluminum stock,aluminum sheet metal rolls |
||
Aluminum Epoxy Resin Hydrophobic foil A8011- O Gold use air conditioning and electrical heat pump
Description:
OD (MM):can be customized
Typical ID :76/156MM ,can be customized
Coating : hydrophobic coating, thickness 3-4 micron on each side
Color:Blue, Gold, Black, Green etc, can be customized
Width: can be cut into as request
Chemical resistance to atmospheric exposure in particular >500 hours neutral salt spray test and protected cutting edges
Package:paper core ,and eye to wall, up to 3 coils per pallet, max. load per pallet 1.2 ton GW,accept customized
Introduction
Hydrophobic Coating Aluminum Foil
1.Hydrophobic coating of aluminum foil and hydrophobic foil aluminum foil ,lotus leaf ,
2.the products has excellent hydrophobic performance and anti pollution effect ,
Application: :
can be widely use air conditioning ,electrical heat pump and other products ,can be very to prevent air conditioning ,electric heat pump heating in winter outdoor ice,frost ,can be improve the efficiency of heating ,and had good energy saving effect,
This products is our company independent intellectual performance has reached the international advanced level ,at present the product has been widely recognized in the market.
Products Specification:
|
Product |
Alloy |
Temper |
Thicknes s (MM) |
Width (MM) |
OD (MM) |
ID (MM) |
Coating thickness both side (UM) |
Color |
Corrosion Resistance |
|
Hydrophobi c coating aluminum foil |
1100, 1030B , 3102 , 8011 |
O,H16, H18,H2 2,H24,H 26 |
0.03-0.8 |
50-1250 |
300-1200 |
75,150, 200,300, 400,500 |
1-3 |
Blue, Gold, Black, Green |
ASTM B117≥ 1000h=10 |
Remarks:Neutral Salt mist with special requirements up to 1500 hours.
Our service :
1. Close Photos of Products and the process of Weighing and Measuring the Thickness, Width, and Quantity must be dispatched before release
2. MTC must be submitted before delivery for quality approval by customer
3. Mechanical resistance: strip must be suitable to draw collar as specificed table without removing the coating or tearing it. Ambient temperature limit: -50 deg celcius ~ 130 deg celcius
4. Export Standard Sea Worth Packing in Wooden Box
(1) No need for form E, they are in bonded zone, no need to pay any tax (2) Weight tolerence ± 5%
(3) Certificate of Test will be issued
(4) Sample can be supplied

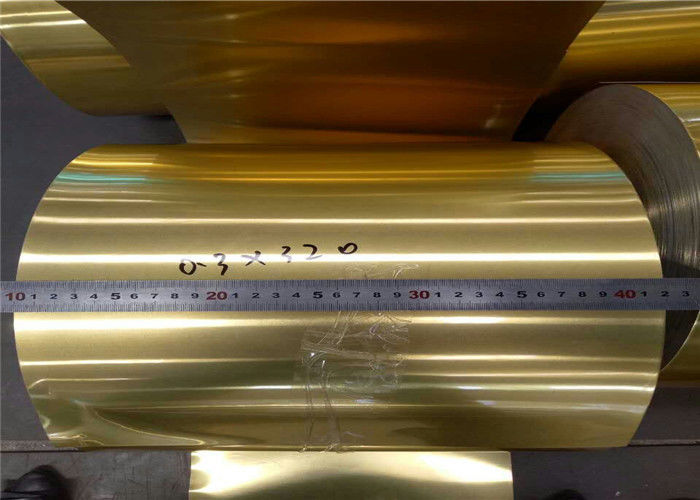

About Aluminum Hydrophobic Gold Foil picture show:
Package:Wooden box.
