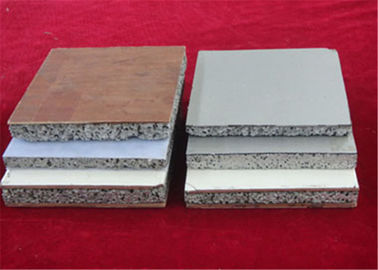

Composite Aluminium Foam Panels 75%~90% Porosity 600*1200mm Standard Size

Composite Aluminium Foam Panels 75%~90% Porosity 600*1200mm Standard Size

Composite Aluminium Foam Panels 75%~90% Porosity 600*1200mm Standard Size

Product Details:

Place of Origin: CHINA
Brand Name: JIMA Aluminum
Certification: IRIS,ISO9001,ISO 14001.
Model Number: CCFM

Payment & Shipping Terms:

Minimum Order Quantity: Negotiations
Price: Negotiations
Packaging Details: wooden pallet,accept custom.
Delivery Time: 20~30days
Payment Terms: T/T, L/C
Supply Ability: 300000 Nm2 yearly.
Contact Now
Detailed Product Description
Application: Compartment Structure, .floor, .box Body, .building, .furniture Shape: Panel
Name: Aluminum Foam Composite Plate Porosity: 75%~90%
Standard Size: 600*1200mm Density: 0.25g/cm³~0.75g/cm³
Color: Any Color Size: 2400mm*800mm*H
Type: Sigle Side & Double Side

Products Name:

Aluminum Foam Composite Plate for Compartment structure

What's Aluminum Foam Composite Plate
The foamed aluminum material is the middle sandwich layer, the upper and lower layers are aluminum plates, and the layer adopts high temperature pressure adhesive bonding compound.

Products Description
.  Products size :2400mm*800mm*H
.  Density:0.25g/cm³~0.75g/cm³
.  Porosity:75%~90%
.  Compressive strength: 3mpa~17mpa
.  flexural Strength: 3mpa~15mpa
.  Sigle side & double side

Feature:
. With light, high sound absorption,
.  high damping,
.  high absorption impact energy,
.  high electromagnetic shielding performance,
.  excellent heat insulation,
.  high temperature, fire-resistant characteristics.
.  Fire resistance does not burn, does not produce poisonous gas,
.  corrosion-resistant,
.  long service life
.  high specific stiffness,
.  anti-aging,
.  Good energy absorption,
Application:
.  Compartment structure,
.  floor
.  box body,
.  building,
.   furniture
Technical Date

Aluminum foam density(g/cm3  Yield strength(Mpa) Compression strength of platform(Mpa) Energy absorption(KJ/M3)
0.21~0.25 2.0~2.5 1.9~2.2 1100~1250
0.26~0.30 2.6~3.8 2.5~3.5 1300~2300
0.31~0.35 4.0~5.4 4.0~5.5 2400~3300
0.36~0.40 4.5~5.1 5.7~6.1 3400~3800
0.41~0.45 7.5~8.0 7.8~8.1 4400~4900
0.46~0.50 8.5~10.3 9.3~10.5 5300~6400
0.51~0.55 10.3~11.5 10.7~12.5 5300~6400
0.56~0.60 11.8~14.5 15.5~13.0 6450~7300
0.61~0.65 14.0~17.0 14.5~17.5 7400~10000
0.67~0.7 17.015.0 18.0~19.0 11000~12000
