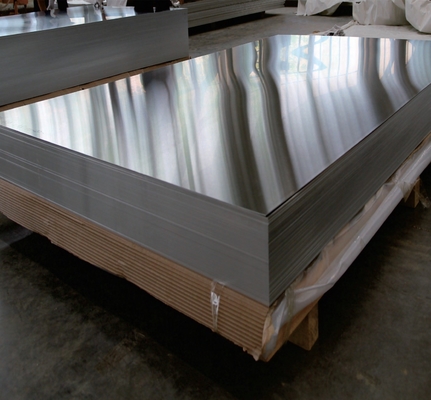

Flat Automotive Aluminum Sheet Alloy Panel AlMg3 H24

Flat Automotive Aluminum Sheet Alloy Panel AlMg3 H24

  • Flat Automotive Aluminum Sheet Alloy Panel AlMg3 H24
Flat Automotive Aluminum Sheet Alloy Panel AlMg3 H24
Product Details:
Place of Origin: CHINA
Brand Name: JIMA Aluminum
Certification: IRIS,ISO9001,GJB9001B,ISO 14001,OHSAS18001
Model Number: EN AW-5754 Al Mg3
Payment & Shipping Terms:
Minimum Order Quantity: Negotiations
Price: Negotiations
Packaging Details: wooden pallet
Delivery Time: 15~30days
Payment Terms: T/T, L/C
Supply Ability: 1000MT/Month
Contact Now
Detailed Product Description
Material: 5754 ,AlMg3 ,en Aw-5754,a5754 Application: Inner Interior Auto Automotive Body Plate,Car Fuel Tank
Shape: Plate,Sheet,Panel Standard: GB/T 3880-2006,GB/T 3880-2012,customize
Name: 5754 O Aluminum Blank 0.85mm 1.5mm 2mm Temper: O,H112,H111,H24
Thickness: 0.85mm, 1.5mm, 2mm
High Light:

AlMg3 Automotive Aluminum Sheet

,

Alloy 5754 Aluminum Sheet

,

Automotive Flat Aluminum Sheet H24

Aluminum Alloy EN AW-5754 Al Mg3 Used in Cars

We are specialized in automotive aluminum products. We have some old customer in for automobile application , so we always hold available materials in stock for0.8mm, 1mm,1.2mm,1.5mm and 2mm ,Such as 6016,6111,6061,6010,6011,6009,5754 5182 ,6181A and 6005A alloy etc ,Size can be cut into as per request.



5754 Automotive Aluminum Blank Applications

  1. Inner Automotive sheet
  2. Outer Automotive sheet
  3. Inner auto body sheet
  4. Inner Interior Auto automotive plate.



5754 Automotive Aluminum Blank Character:

  • Good formability
  • Strong surface Roughness
  • Good solderability
  • Excellent baking hardening
  • Good weldability
  • Superb bake hardening ability



Serious Advantages for the Application of Aluminum in Autos:

  • Higher strength-to-weight ratio, higher fuel efficiency
  • Better formability.
  • As a result, in such a tough period regarding to energy and environmental issues, aluminium plays an essential role in weight lightening and fuel efficiency increment to ease the energy and environmental problems.



5754 Aluminum Alloy Hot Rolling Coil Specification

Typical Alloy Typical temper

Thickness

(MM)

Width

(MM)

ID

(MM)

Max.OD

(MM)

Max.single coil weight

(MT)

Application
5754 F/O,H112 2.2-15 600~2560 610~665 2560 28

Stock Material for Auto Body Sheet

Remark:Product with thickness under 3.5mm can reach min.inner coil diameter of 505mm.



5754 Aluminum Mechanical Properties

Cu Mg Mn Fe Si Zn Ti Cr Other Al
0.1 2.6~3.6 0.50 0.4 0.4 0.2 0.15 0.3 0.15 Remainder



5754 Aluminum Alloy Blank Mechanical Properties

Alloy σ0.2(MPa) σb(MPa) δ(%) n(Value) r (Value) Application
5754 ≥100 ≥215 ≥23 ≥0.30 ≥0.60 Inner plate



Aluminium 5754 Sheet Standard Specification

  Alloy Series               Typical Alloy Typcial Tempe

Thickness

(MM)

Width

(MM)

Length

(MM)

5×××

5754   T4,T6,O   0.8~1.5  1220, 1250  2400, 2500



The Application of Aluminum Alloy Blank 5754 Alloy in Cars

Typical Alloy Typical Application
  5754

1.  Inner Automotive sheet

2.  Outer Automotive sheet

3.  Inner auto body sheet

4.  Inner Interior Auto automotive plate.



JIMA Hold in Stock Material List for Automotive Material

Alloy Thickness Standard size
6016 -T4/T6 0.8mm 1.0mm 1.15mm 1.2mm 1.5mm 2mm 1250*2500mm/1220*2440mm
6111 T4 0.8mm, 1.0mm, 1.2mm,1.5mm,2mm 1250*2500mm/1220*2400mm
6010 T4 0.8mm, 1.0mm, 1.2mm ,1.5mm 1250*2500mm/1220*2400mm
6009 T4 0.8mm, 1.0mm, 1.15mm, 1.2mm, 1.5mm 1250*2500mm/1220*2400mm
5754 0.8mm, 1.0mm, 1.2mm, 1.5mm 1250*2500mm/1220*2400mm
6181A T4 0.8mm, 1.0mm, 1.15mm, 1.2mm, 1.5mm 1250*2500mm/1220*2400mm
5182 H321 H34 0.8mm, 1.0mm,1.2mm,1.5mm 1250*2500mm/1220*2400mm
6022 t4 0.8mm, 1.0mm 1250*2500mm/1220*2400mm
6011 T4 0.8mm, 1.0mm, 1.15mm, 1.2mm, 1.5mm 1250*2500mm/1220*2400mm
6005A T4 1mm, 1.2mm, 1.5mm, 2mm 1250*2500mm/1220*2400mm
6061 0.8mm,1mm,1.2mm,1.5mm,2mm 1250*2500mm/1220*2400mm
6014 0.8mm,1mm,1.2mm,1.5mm 1250*2500mm/1220*2400mm





FAQ:

Q1: What's your guarantee?

A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.



Q2: What's your delivery time ?

A: The common delivery time is 20-25days. The specific delivery time depends your order items and quantity.



Q3: What's your minimum order quantity?

A: The MOQ is 5MT,but we can provide smaple order for test.



Q4: Can we come to China visit factory ?
A: Yes ,you can .



Q5: Can you cut into any size?

A: Yes,we can cuting as per your size.



Q6: Can you provide MIDS &MTC?

A: Yes,we can



Q7: Can you provide smaple?

A: Yes,we can free A4 size sample .



5754 Aluminum Uses in Auto:

Flat Automotive Aluminum Sheet Alloy Panel AlMg3 H24 0

Flat Automotive Aluminum Sheet Alloy Panel AlMg3 H24 1
