Key Words:
aluminum forged tube 5456
aluminum forging parts 5456
aluminum forged Rings 5456
auto aluminum parts 5456
forged aluminum alloy 5456
hot aluminum forgings 5456
 |
| Place of Origin: | CHINA |
| Brand Name: | JIMA |
| Certification: | ISO9001-2008,SGS,ROHS. |
| Model Number: | ALP |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | wooden pallet |
| Delivery Time: | 15~30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pcs /per month |
| Application: | Military,Marine | Name: | OEM 5456 Forging Aluminum Metal Parts Military Rocket /Marine Structure/Hot Forging Parts/Forging Metal Parts |
|---|---|---|---|
| Standard: | JIS, DIN, BS, ASTM, SAE. | Alloy: | 5083 |
| Surface Treatment: | Anodizing,Plating,Satin,Painting,Powder Coating,Anodized Etc | Sample: | Can Be Customized |
| Highlight: | Marine Structure Aluminum Metal Parts,Hot Forging Aluminum Metal Parts,Military Rocket Aluminum Metal Parts |
||
Company Profile:
JIMA Aluminum mainly forging, and specialized in the production of big forging parts, aluminum precision, aluminum extrusions, metal forging processing, heat treatment, etc., has formed a complete production process from raw materials to the finished product aluminum accessories chain.
Material is the life of forging. The quality of forgings has always been inseparable from the quality of materials.
Our Advantages
3 technical patents and 2 practical patents related to high-silicon aluminum alloy melting, crystallization, and forging
2. Multiple professional presses adapted to the deformation speed of high-silicon aluminum alloys
3. Two intermediate frequency heating furnaces suitable for heating weak magnetic materials such as high-silicon aluminum alloys
4. Perfect forging process of various pistons and swash plates, mold tooling technology, materials, and product inspection standards.
5. The close cooperative relationship between the company and the university scientific research is our strong technical backing.
6. We are high-tech enterprises
7. Development capability: aluminum alloy, titanium alloy, super alloy, non-ferrous metal forging development
Product Details:
| Material | Aluminum Alloy 5456 |
| Process | Forging+CNC+Heat Treatment |
| Surface Treatment | Transparent / Color Anodized;Hard Anodizing;Powder Coating; Sandblasting, Laser Carving, Silk Screening; Nickel-Plated, Chrome, Galvanized, Silver/Gold Plating; Black Oxide Coating; Polishing; etc... |
| Manufacture Ability | Depends on The Complexity Of Different Products And Quantities |
| Experience | Aluminum Machining Service for 12 Years |
| Packaging | Standard Export Wooden Pallets Another Request According to Your Need |
| MOQ | 1pcs |
| Sample | Can be Customized |
| Mold | Can be Customized |
| Lead Time |
Mold for 15-20Days Process for 15-20Days |
| OEM | Can be Customized |
| Chemical Composition of 5456 | |||||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Sn | Ti | Zr | Others | Al | ||
| Each | Total | ||||||||||||
| 5456 | 0.25 | 0.5 | 0.1 | 0.7-1.2 | 4.5-5.6 | 0.05-0.25 | 0.05 | 0.05-0.20 | 0.06-0.20 | 0.05max | 0.15max | Rest | |
| Mechanical Properties |
| Properties | Conditions | ||
| T (°C) | Treatment | ||
| Density (×1000 kg/m3) | 2.66 | 25 | |
| Poisson's Ratio | 0.33 | 25 | |
| Elastic Modulus (GPa) | 70-80 | 25 | |
| Tensile Strength (Mpa) | 325 | 25 | H111 |
| Yield Strength (Mpa) | 230 | ||
| Elongation (%) | |||
| Reduction in Area (%) | |||
| Hardness (HB500) | 90 | 25 | H116 |
| Shear Strength (MPa) | 205 | 25 |
H321
|
| Thermal Properties |
| Properties | Conditions | ||
| T (°C) | Treatment | ||
| Thermal Expansion (10-6/ºC) | 23.9 | 20-100 | |
| Thermal Conductivity (W/m-K) | 116 | 25 | All |
| Electric Properties |
| Properties | Conditions | ||
| T (°C) | Treatment | ||
| Electric Resistivity (10-9W-m) | 60 | 25 | All |
Standard Specifications:
aluminum forged tube 5456
aluminum forging parts 5456
aluminum forged Rings 5456
auto aluminum parts 5456
forged aluminum alloy 5456
hot aluminum forgings 5456

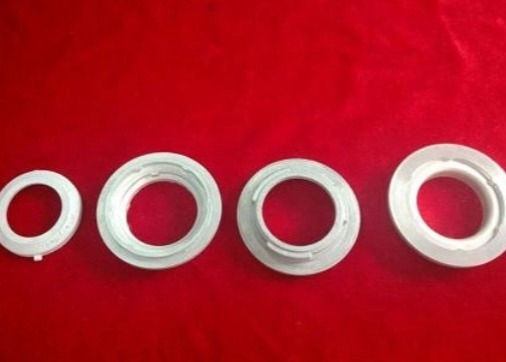

Product Show:
Application:
Equipment Capacity:
Presses of 4000T, 3150T, 2000T, 1600T, 800T, 600T, 550T and 300T
5T, 2T, 750KG, three free forging hammers
4 axial diameters with diameters of 8M, 5M, and 2M
500 tons three-way forging press
450T double action press
400T friction press (4 sets)
630T hot forging friction press
4 heat treatment furnaces
Mesh belt heating furnace 6 sets
2 intermediate frequency furnaces
Machining CNC equipment 8 sets
Quality Inspection:
Metal material universal testing machine
A complete set of equipment for material composition testing
High-power metallographic microscope (1400 times)
Low-power metallographic microscope (40 times)
3D, 2D Projection Mapper (CAM)
Brinell, Weber hardness tester
Test piece polishing machine
Analytical Balances
marking machine
FAQ:
Q1:Where can I get product&price information?
A1:Send us an inquiry e-mail, we will contact you as we receive your mail.
We will offer you the quotation within 24 working hours after receiving your detailed information. To quote you faster and more accurately,
please provide us with the following information together with your inquiry:
1) CAD or 3D Drawings
3) Material requirement
4) Surface treatment
5) Quantity (per order/month/annual)
6) Any special demands or requirements, such as packing, labels, delivery, etc.
Q2:How long can I get the sample?
A2:Depends on your specific items, within 3-7 days is required generally.
Q3: How long is the lead time for mold and machining parts?
A3: It all depends on the mold (parts) size and complexity.
Normally, the lead time is 18-20 days for molds. If the molds are very simple and not big, we can work them out within 15 days.
The lead time for machining parts is around 2-4 weeks.
For sheet metal fabrication the lead time is around 3-5 weeks.
Q4:Can we sign NDA?
A4: Sure. We never divulge customers' information to anyone else. we will keep your drawing well and not release it to others without your permission.
Q5: Is it possible to know how are my products going on without visiting your factory?
A5: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining or the plastic injection progress.
