Place of Origin: | CHINA |
Brand Name: | JIMA Aluminum |
Certification: | IRIS,ISO9001,ISO 14001. |
Model Number: | 8011,3003,5005,5052 |
Minimum Order Quantity: | Negotiations |
---|---|
Price: | Negotiations |
Packaging Details: | wooden pallet |
Delivery Time: | 20~25days |
Payment Terms: | T/T, L/C |
Supply Ability: | 2000 MT per month |
Name: | TC4 (Ti-6Al-4V) Titanium Alloy Rods And Bars | Alloy: | TC4 (Ti-6Al-4V) |
---|---|---|---|
Execution Standards: | GB/T 2965 GJB 2218A GJB 1538A AMS 4928, ASTM B348, AMS-T-9047 | Application: | Materials Used In Aerospace, Automotive And New Energy, Industrial Molds And Dies, And Semiconductor Fields |
Highlight: | TC4 Titanium Alloy Bars,Ti-6Al-4V Titanium Alloy Rods,TC4 Titanium Alloy Rods |
TC4 (Ti-6Al-4V) Titanium Alloy Rods and Bars 1,Products: TC4 (Ti-6Al-4V) is one of the most widely used high-strength titanium alloys at present. TC4 titanium alloy combines excellent corrosion resistance, good mechanical strength and low density (about 4.5 kg/dm3). TC4 titanium alloy is a heat-treatable titanium alloy product that can be processed up to 25mm (solution heat treatment + aging), and the maximum operating temperature can reach 400°C. This material has good formability and excellent specific strength, so it is widely used in aerospace and motorsports. Approximately 50% of the global titanium alloy procurement volume is TC4 (Ti-6Al-4V). 2,Application Areas: Materials used in aerospace, automotive and new energy, industrial molds and dies, and semiconductor fields 3,Product Details:
Unique Advantages
|
Main Applications
|
Execution Standards
|
1.Excellent corrosion resistance
|
1.Medical components
|
GB/T 2965
|
2.Excellent fatigue strength
|
2.Chemical components
|
GJB 2218A
|
3.Good machinability
|
3.Marine components
|
GJB 1538A
|
4.Good strength-to-weight ratio
|
4.Racing components
|
AMS 4928, ASTM B348, AMS-T-9047
|
4,Technical Parameters
Element
|
Ti
|
Al
|
V
|
Fe
|
C
|
N
|
H
|
O
|
Other Single
|
Other Total
|
Min
|
Balance
|
5.5
|
3.5
|
|
|
|
|
|
|
|
Max
|
Balance
|
6.75
|
4.5
|
0.3
|
0.08
|
0.05
|
0.015
|
0.2
|
0.1
|
0.4
|
Room Temperature Tensile Properties
|
High Temperature Mechanical Properties
|
||
|
Minimum
|
|
Minimum
|
Tensile Strength (Rm) / MPa
|
895
|
Tensile Strength (Rm) / MPa
|
600
|
Yield Strength (Rp0.2) / MPa
|
827
|
Test Stress (σ) / MPa
|
560
|
Elongation after Fracture (A) / %
|
10
|
Test Time (t) / h
|
100
|
Reduction of Area (Z) / %
|
25
|
Test Temperature / ℃
|
400
|

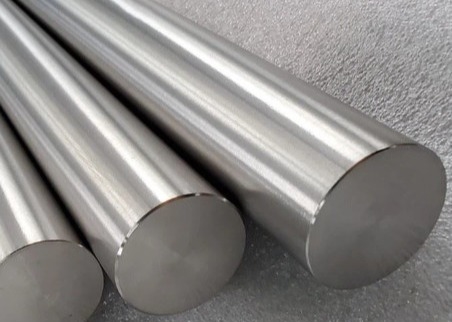

5,Product Showcase![]()
6,Mechanical/Mechanical Properties of Titanium and Titanium Alloy Plates
Alloy
|
Condition
|
Thickness Range/mm
|
Tensile Strength (Rm)/MPa
|
Yield Strength (Rp0.2)/MPa
|
Elongation after Fracture /% ≥
|
Bending Radius
|
TA2
|
M
|
0.3 - 1.0
|
440 - 620
|
≥320
|
≥35
|
≥100°, 3t
|
|
|
> 1.0 - 2.0
|
440 - 620
|
≥320
|
≥30
|
≥100°, 3t
|
|
|
> 2 - 5.0
|
440 - 620
|
≥320
|
≥25
|
≥90°, 3t
|
|
|
> 5 - 10.0
|
440 - 620
|
≥320
|
≥25
|
-
|
|
|
> 10.0 - 30
|
440 - 620
|
≥320
|
≥18
|
-
|
TC4
|
M
|
0.5 - 1.8
|
925 - 1150
|
≥870
|
≥12
|
≥105°, 9t
|
|
|
> 1.8 - 4.0
|
925 - 1150
|
≥870
|
≥12
|
≥105°, 10t
|
|
|
> 4.0 - 5.0
|
925 - 1150
|
≥870
|
≥10
|
≥105°, 10t
|
|
|
> 5.0 - 10.0
|
925 - 1150
|
≥825
|
≥10
|
-
|
|
|
> 10.0 - 100
|
925 - 1150
|
≥825
|
≥9
|
-
|
Alloy
|
Condition
|
Thickness Range/mm
|
Tensile Strength (Rm)/MPa
|
Test Temperature/℃
|
Test Stress(σ)/MPa
|
Test Time(t)/h
|
TC4
|
M
|
0.5 - 30.0mm
|
≥590
|
400
|
540
|
≥100
|
|
|
|
≥540
|
500
|
195
|
|
