Thickness 2.5mm 5083 H116 Marine Grade Aluminum Plate For Shipbuilding

Place of Origin CHINA
Brand Name JIMA Aluminum
Certification IRIS,ISO9001,ISO 14001,Marine ABS,Marine DNV
Model Number 5083
Minimum Order Quantity Negotiations
Price Negotiations
Packaging Details Wooden Pallet
Delivery Time 20~30days
Payment Terms T/T, L/C
Supply Ability 1000 per month
Product Details
Material 5083,A5083,AA5083 Applied For Shipping Building
Ahape Plate,Sheet,Panel Standard GB/T 3880-2006,GB/T 3880-2012
Name 5083-h116 Aluminum Plate For Shipping Building Marine Certificate Marine ABS,Marine DNV.
Thickness 2.5-260mm
High Light

H116 Marine Grade Aluminum Plate


5083 Marine Grade Aluminum Plate


Shipbuilding Marine Grade Aluminum Plate

Leave a Message
Product Description

Thickness 2.5-260mm 5083-h116 Aluminum Plate for Ship Building Good Processability


Alloy 5083 aluminum plates have higher strength than 5052 plate and has exceptional thermal conductivity. In the tempered condition, it retains good formability due to excellent ductility. It is highly suitable for welding and can be hardened by cold work. Because Alloy 5083 exhibits excellent resistance to general corrosion, it is used in marine applications. Since Alloy 5083 is capable of withstanding extremely low temperatures without brittleness or loss of properties, it is especially suited to the cryogenic market. Alloy 5083 has been used in vehicle armor plate due to its high strength factor.


Products introduction:

  •  As development of global marine industry and request for shipping efficiency, high speed passenger ship has been used more and more aluminium alloy as body structural material. Since the density of aluminium alloy is only one third of steel, and its excellent corrosion resistance, it has become the best solution to reduce weight of ship. However, there is only a few manufacturers who can provide high quality and large scale aluminium alloy all over the world.
  •  Can provide 5083 marine aluminium alloy sheet plate
  •  Alloy:5083,a5083,Temper:H116,H111,H321,H34,H12,H112
  •  Can provide stronglight 5083 aluminium chainring 110mm
  •  Aluminium 5083 corrosion
  •  5083 aluminium density/aluminium 5083 h321 density:2.71
  •  Can provid aluminium en aw 5083
  •  Can provid aluminium grade 5083 h116
  •  Can provid aluminium grade 5083 h321
  •  Can provid aluminium plate grade 5083
  •  Can provid marine grade aluminium 5083
  •  5083 aluminium hardness:HB45~75
  •  welding of aluminium 5083
  •  Aluminium 5083 yield strength
  •  5083 aluminium tensile strength
Name Marine grade aluminium alloy sheet plate sizes 5083 for Marine vessel &Transv Floor
Usage Shipping building,Marine vessel &Transv Floor
Material 5083-h116 / 5083-h321 2000X8000 MM 2000x6000mm
Thickness 2.5-260mm
Length 5.8-10M

AA5083 aluminium grades Product character:

1.  Superior corrosion resistance,

2.  Good weldability,

3.  High fatigue resistance.

4.  Possess high strength,

5.  Good processability

6.  Excellent corrosion resistance.

7.  Large specification.


Aluminium sheet grade AA5083 Application

  •  Used in the superstructures of marine and offshore engineering,
  •  Such as ship body structures and bays.
  •  In addition, aluminium tubes with small diameter can be used as vessels, and larger tubes and rods can be masts and beam-   columns etc.
  •  Sometimes, some profiles with small wall thickness are used in hull structures for the purpose of lightening as well.
  •  Mainly applied in LNG tank, ferry, yacht, patrol boat, the superstructure and lifting platform for other large vessels, and the       drilling platform etc.
  •  Transv. Floor
  •  Engine Girder
  •  Rib plate, seperating panel

JIMA Aluminum Advantage:

1.   JIMA completely meet the requirements of marine applications.

2.   Via the cooperation with international and domestic experts, JIMA masters the state-of-the-art production technologies of aluminium plates and profiles for marine,

and is able to provide prospective supports for marine and offshore industries.


 Aluminium alloy 5083 chemical composition

Cu Mg Mn Fe Si Zn Ti Cr Other Al
0.1 4.0~4.9 0.40~1.0 0.4 0.4 0.25 0.15 0.05~0.25 0.15 Remainder


5083 Aluminium alloy properties for Mechanical Properties

Alloy Temper

Yield Strength


Tensile Strength


Elongation (%)

(L0=50 mm)

Bend Performance


5083 O ≥145 290~370 ≥17



5083 H111 124~200 276~351 ≥16





5083 Aluminium sheet sizes for Hot Rolled plate specification

Alloy Series TypIcial Alloy Typcial Tempe









A5083  F,112,H116 12~260 1000~3800 2000-38000

Hot Rolled sheet specification

Alloy Series TypIcial Alloy Typcial Tempe









5083,a5083, F,112,H116 3~12 2000~2600 2000-24000


Annealed aluminum plate specification

Alloy Series TypIcial Alloy Typcial Tempe









5052,5754,5083,5182,8086,5A06  O,H111,H116 3~12 1000~2600 2000-24000


Aluminium en aw 5083 application in ship building

Application Field Alloy Products classification Typical application
5xxx 5083,AA5083 Plate

Side of the ship, external board of ship bottom,Rib plate, Seperating panel,Operation room funnel,Deck,Bulwark.

5xxx 5086/5383 Plate

Side of the ship, external board of ship bottom,Deck.




Q1:  What's your guarantee?

A:  All our products have 6 months guarantee after received goods, if any quality problem can contact us.


Q2:  What's your delivery time ?

A:  The delivery time is 20-30days. The specific delivery time depends your order items and quantity.


Q3:  What's your minimum order quantity?

A:  The MOQ is 5MT,but we can provide samaple order for test.


Q4:  Can we come to China visit factory ?
Yes ,you can .


Q5: Can you cut into any size?

A: yes,we can cuting as per your size.


Q6:  Can you provide Marine Grade Certificate?

A: Yes,we can

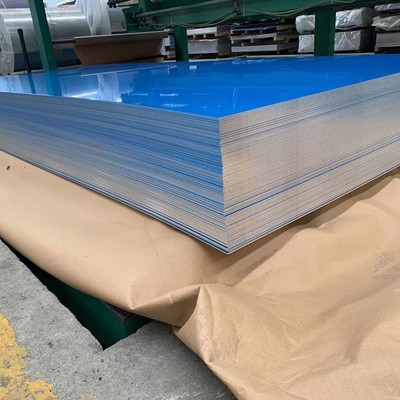

Aluminium en aw 5083 /marine grade aluminium 5083​ picture show:

Thickness 2.5mm 5083 H116 Marine Grade Aluminum Plate For Shipbuilding 0

5083 marine aluminium alloy sheet plate pictures show :

Thickness 2.5mm 5083 H116 Marine Grade Aluminum Plate For Shipbuilding 1
