| Place of Origin: | CHINA |
| Brand Name: | JIMA |
| Certification: | ISO9001-2008,SGS,ROHS. |
| Model Number: | 2618 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | wooden pallet |
| Delivery Time: | 20~30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 MT /per month |
| Application: | Airplane Cylinder Head & Piston Hub | Name: | 2618 T6 Forged Aluminum |
|---|---|---|---|
| Standard: | JIS, DIN, BS, ASTM, SAE. | Type: | Casting Forging |
| Technics: | Forge, CNC | Alloy: | 2618,A2618,A92618 AK4-1/1141 |
| Temper: | F,O, T61,T6 | ||
| Highlight: | billet aluminum bar stock,billet premium aluminium |
||

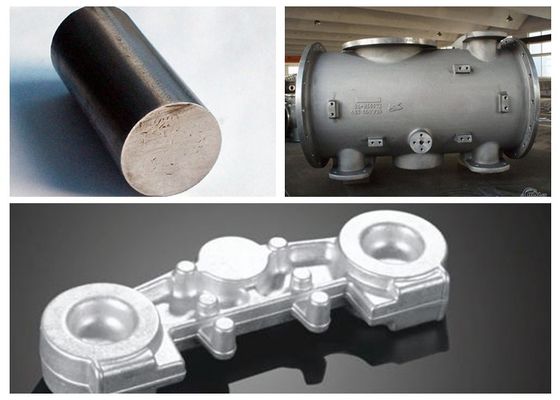

2618 t6 forged aluminum Material,2618 t6 Aluminum Rod For turbine blades.
2618 aluminum round bar Description
Alloy: 2618,A2618,A92618 AK4-1/1141
Temper: F,O, T61,T6,T651,T851
Max diameter: 1320mm.
Max length : 7500mm.
The density:2.77kg/m3
Normal size:Φ166,Φ220,Φ380,Φ396,Φ448,Φ462,Φ566,Φ582,Φ915,Φ1060,Φ1220,Φ1320
Features 2618-t61 forged aluminum:
Large specification :the produced billetφ1320mm is the largest billet in the world.
The max : weight of the billet up to 12.5 ton.
High purity : low hydrogen, low dross, low alkali content inside the ingot .
high-homogeneity : composition & organization, Small degree of segregation.small grain
size difference between core and surface.
Fine grain size.
Availability of product with the hydrogen content ≤0.08ML/100gAl.
Availability of product with porosity at class one .
Availability of product with oxidation film at the class one.
Availability of product with ultrasonic flaw detection at level A.
2618 aluminum forging Application:
Airplane cylinder head and piston hub, jet motor accessories, rubber mold, General heat-resistant parts,ect
2618 aluminum composition
| Cu | Mg | Ni | Fe | Si | Zn | Ti | Cr | Other | Al |
| 1.9-2.7 | 1.3-1.8 | 0.9-1.2 | 0.9-1.3 | 0.1-0.25 | 0.1 | 0.04-0.10 | - | <0.15 | 96.4-98.8 |
2618 aluminum material properties
|
Tensile strength |
yield point, elongation(kg/mm2) | Elongation(%) |
brinell hardness |
shear strength(kg/mm2) |
fatigue strength(kg/mm2) |
| 45 | 38 | 10 | 130 | 26.7 | 13.4 |
Package:wooden carton
2618-t61 forged aluminum product application
| Alloy | Products size | |
|
Diameter |
Max. length |
|
|
2xxx |
Φ166 | 7500 |
| Φ220 | 7500 | |
| Φ380 | 7500 | |
| Φ396 | 7500 | |
| Φ448 | 7500 | |
| Φ462 | 7500 | |
| Φ566 | 7500 | |
| Φ582 | 7500 | |
|
2xxx |
Φ915 | 4500 |
| Φ1060 | 4000 | |
| Φ1220 | 4000 | |
| Φ1320 | 3500 | |
Remark:1. Billet peeling is available.
2. The cut-to-length product is available upon to customer’s request.
Aluminium forging 2618 specification
| Alloy | forging product application |
| 2618 | Airplane cylinder head and piston hub, jet motor accessories, rubber mold, General heat-resistant parts,ect |
