High Purity Aluminium 6005a T6 , Transportation Grade Aluminium Alloy Billet

High Purity Aluminium 6005a T6 , Transportation Grade Aluminium Alloy Billet

  • High Purity Aluminium 6005a T6 , Transportation Grade Aluminium Alloy Billet
High Purity Aluminium 6005a T6 , Transportation Grade Aluminium Alloy Billet
Product Details:
Place of Origin: CHINA
Brand Name: JIMA
Certification: ISO9001-2008,SGS,ROHS.
Model Number: 6005A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiations
Price: Negotiations
Packaging Details: wooden pallet
Delivery Time: 20~30days
Payment Terms: T/T, L/C
Supply Ability: 1000 per month
Contact Now
Detailed Product Description

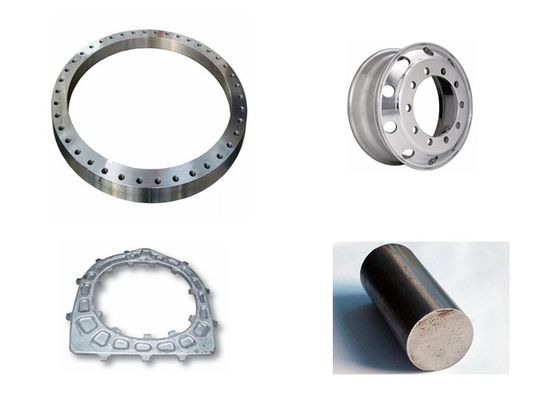

Application: Railway Transportation Transportation Machinery Parts Name: 6005A T6 Aluminum Aluminium Alloy Forging Parts
Standard: JIS, DIN, BS, ASTM, SAE. Type: Casting Forging
Technics: Forge, CNC Alloy: 6005A
Temper: T6
High Light:

aluminium alloy billet

,

billet premium aluminium

High Purity 6005AaT6 aluminium alloy forging parts for railway transportation transportation machinery parts.



Quickly details.

  1.  Alloy:6005A:
  2.  Max diameter: 1320mm.
  3.  Max length : 7500mm.
  4.  Normal size:Φ166,Φ220,Φ380,Φ396,Φ448,Φ462,Φ566,Φ582,Φ915,Φ1060,Φ1220,Φ1320.
  5.  GB/T 3191-1998.

Aluminum 6005a t6Features:

Large specification :the produced billetφ1320mm is the largest billet in the world.

The max : weight of the billet up to 12.5 ton.

High purity : low hydrogen, low dross, low alkali content inside the ingot .

high-homogeneity : composition & organization, Small degree of segregation.small grain

size difference between core and surface.

Fine grain size.

Availability of product with the hydrogen content ≤0.08ML/100gAl.

Availability of product with porosity at class one .

Availability of product with oxidation film at the class one.

Availability of product with ultrasonic flaw detection at level A.



6005AaT6 aluminium alloy forging Application:

supercharger fan, high speed train carriage material & transportation machinery parts, ect.



Alloy aluminum 6005A Chemical Composition Standard.



Cu Mg Mn Fe Si Zn Ti Cr Other Al
0.3 0.4-0.7 0.5 0.35 0.5-0.9 0.20 0.10 0.3 <0.15 Balance



Package: wooden pallet.



6005a aluminum alloy forging alloy & forging product size.



Alloy      6005a aluminum alloy sizes

Diameter

(mm)

Max. length

(mm)



6xxx



Φ166 7500
Φ220 7500
Φ380 7500
Φ396 7500
Φ448 7500
Φ462 7500
Φ566 7500
Φ582 7500

Remark:1. Billet peeling is available.
2.  The cut-to-length product is available upon to customer’s request.



6005a aluminum forging alloy & forging product application.



Alloy forging product application
6005A supercharger fan, high speed train carriage material & transportation machinery parts, ect
